The profile system

The elneos connect workstation series offers entirely new combination possibilities with its sophisticated aluminum profile system. The foundation of the profile system is the L-profile. This base profile is complemented by additional profile types—the Expand profiles and the telescopic profile—providing elneos connect with complete flexibility and freedom.

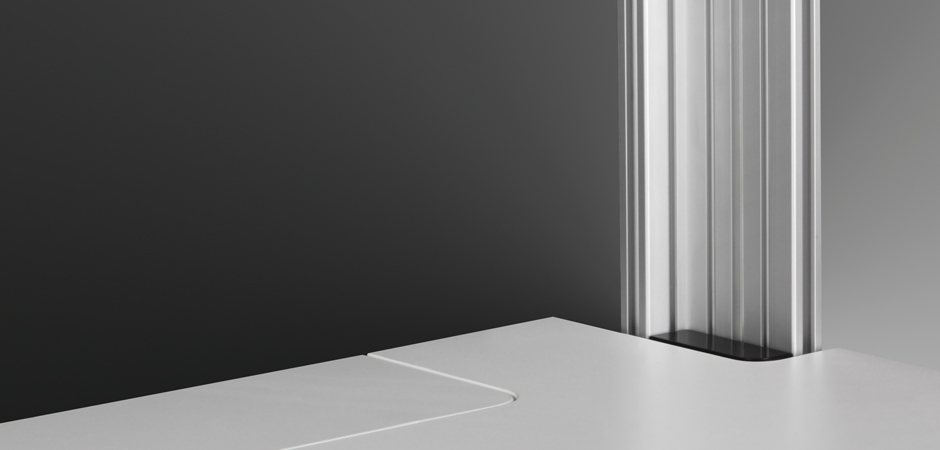

The L-profile forms the basis of the system.

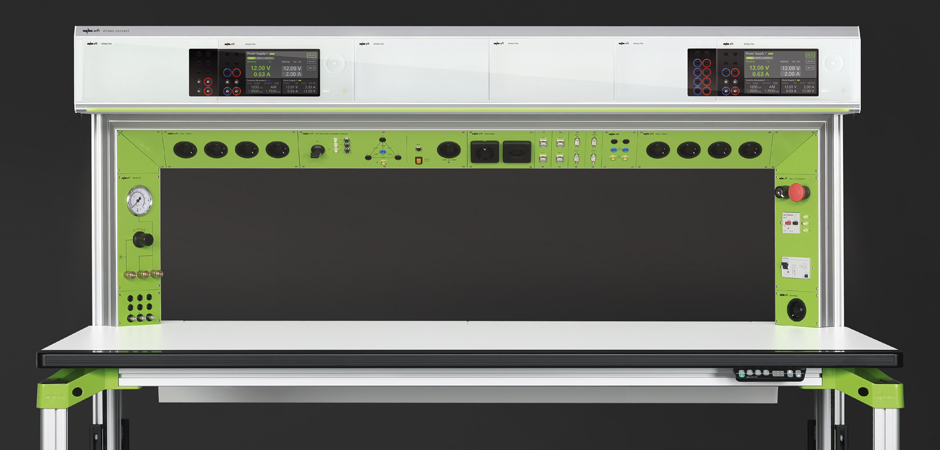

Device cockpits and storage boards are mounted as a single piece on the rear profiles. Alternatively, the rear foot profiles can also be extended. These one-piece profiles provide maximum stability due to their shape and uninterrupted structure.

Meaningful complement to the L-profile

The L-profile allows for the rear profile legs to be extended arbitrarily using an add-on profile. The extension is achieved through internal dowels that engage into corresponding cylinders of the lower L-profile, simultaneously providing a torsion lock. Additionally, the profiles are secured to ensure a highly solid connection that remains invisible from the outside once assembled.

The Expandprofil 1

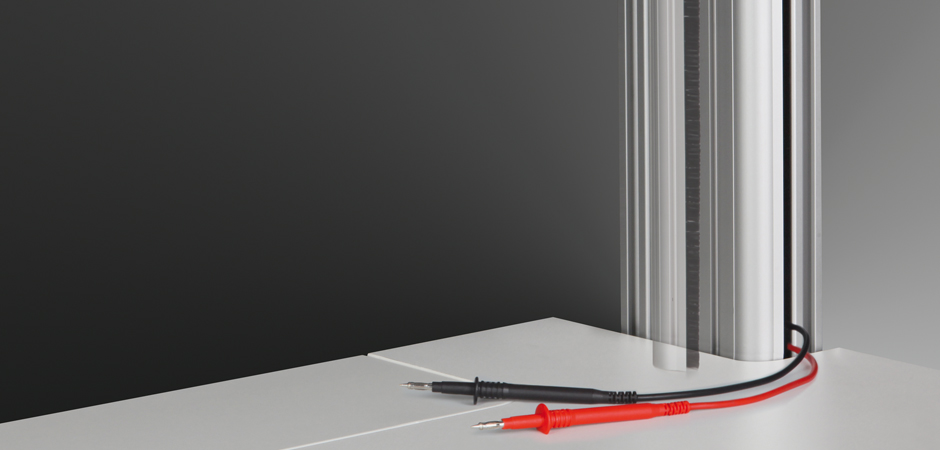

This profile can be clipped and screwed onto the inside of the L-profile, providing excellent access to all media. It features two cable chambers and a front brush strip that allows cables from the front cable chamber to be routed all the way down the front height toward the user. An internal partition ensures separation from other media in the rear cable chamber.

The Expandprofil 2

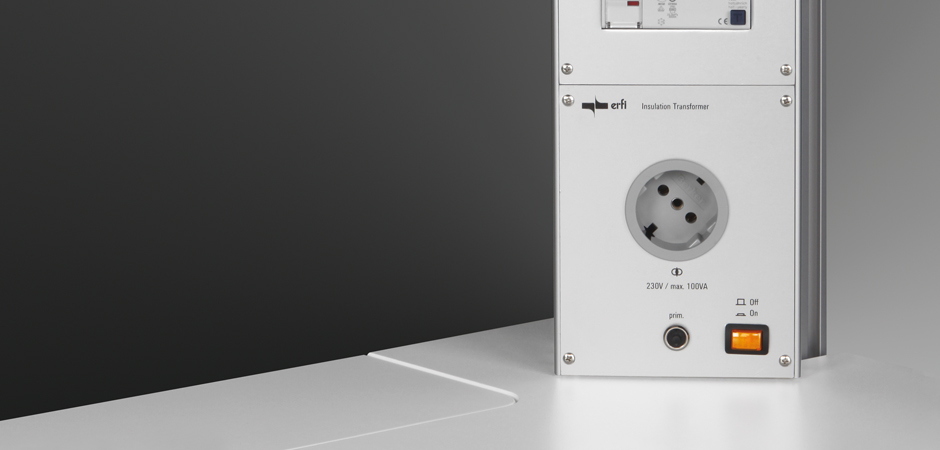

This profile is mounted on the inside of the L-profile and serves as a mounting rail for devices. It allows for the installation of various device programs and can be installed horizontally, vertically, or in combination.

The Telescope profile

The telescopic profile with functional grooves provides optimal stability for the system. It is specifically used where height adjustment is desired. A hydraulic cylinder is installed in each L-profile; in total, four hydraulic cylinders lift the entire table structure. The telescopic profile is precisely matched to the L-profile and forms a highly stable telescopic guide with it. When the hydraulic cylinders extend, the telescopic profiles remain fixed at the floor, keeping the cylinders and cables hidden from view.
