Test Devices Basic – Semi-Automatic and Manual Testing Equipment

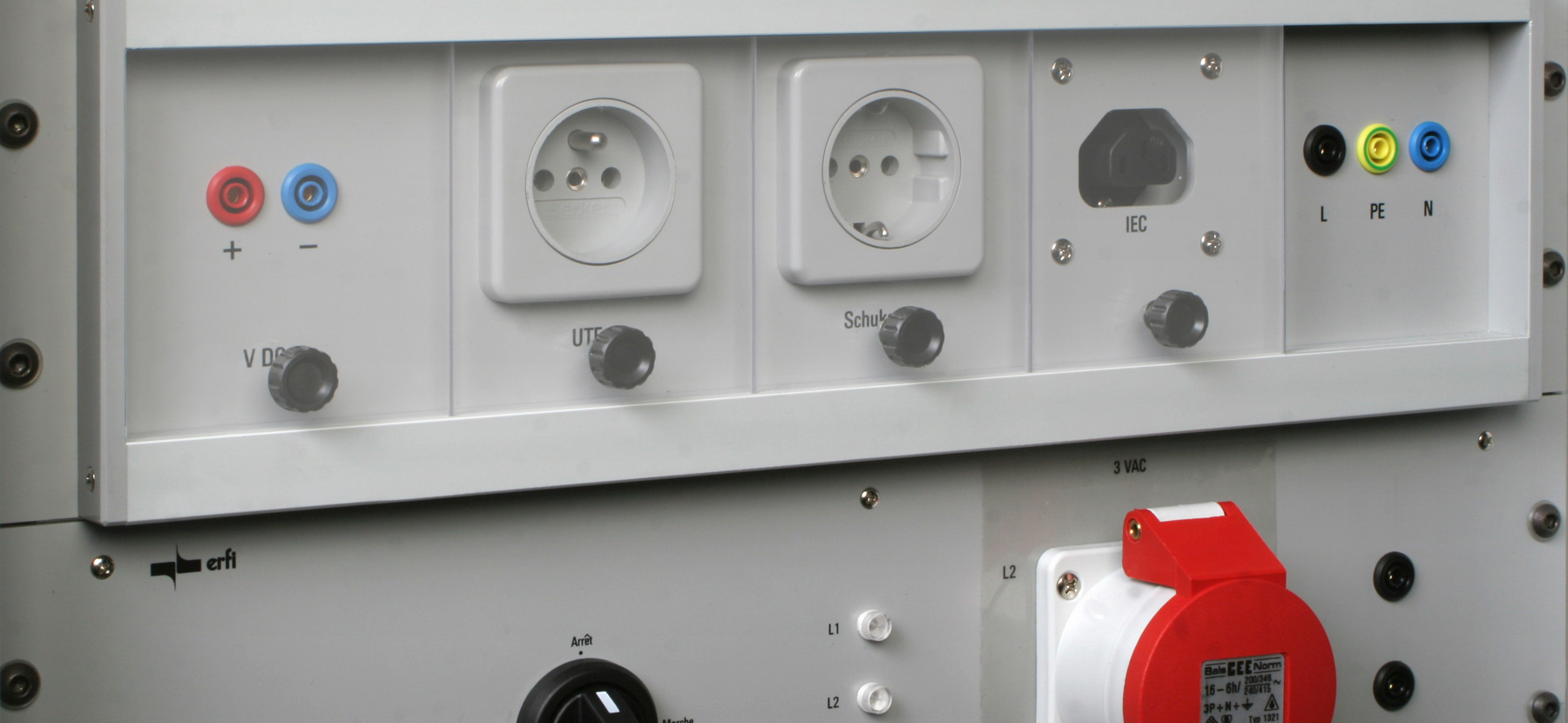

The Basic test devices from the highlab and basic series stand out due to their flexibility and modularity. A key feature of this product line is the excellent technical performance of the integrated microprocessor and interface technology, which allows measurement data to be efficiently processed using the erfi testing software CANDY Power—even within this segment of testing equipment.

Tests for:

High voltage
Insulation
Protective conductor
Leakage current

Due to the modular design, the components combine to form complete VDE0113 / EN60204 testers. This device series is especially suitable for customers who test small to medium quantities and for whom manual contacting of the test object using HV probes, protective conductor test probes, etc., is sufficient.

Key data – High Voltage

Size: 19″ / 3U (3 rack units)
Test type: manual / semi-automatic
Test voltage: 0-5 kV AC (manual)
Alternatively: 0-7 kV DC
Output power: 500 VA
Short-circuit current: > 200mA
Analog display: for voltage (U) and current (I)
Shut-off current: continuously adjustable from 2 to 120 mA
Burn-out function included
Test duration: 1 to 99 seconds
Start: front and rear panel
Breakdown indication: visual and acoustic
Contact: Breakdown or error message
Analog interface: optional with CANDY test software

Key Data – Insulation Testing

Size: 3U / 28 HP
Test type: manual / semi-automatic
Test voltage: 500 V DC
Alternatively: 500 / 1000 V DC, switchable
Digital display: for insulation resistance value
Limit settings: Rmin and Rmax
Test duration: 1 to 99 seconds. Start: front and rear panel
Error indication: visual via digital display and audible
Rear contact: fault indication
RS232 interface: standard, for querying resistance measurement values
Analog interface: optional with CANDY test software

Key Data Protective Conductor

Size: 3U / 56 HP
Test type: manual / semi-automatic
Test current: 10 / 25 A AC switchable
Digital display: for protective conductor resistance value
Limit settings: Rmin and Rmax
Test duration: 1 to 99 seconds
Start: front and rear
Error indication: visual via digital display and audible
Rear contact: fault indication
RS232 interface: standard, for querying resistance measurement values
Analog interface: optional with CANDY test software

Technical Data Leakage Current

Size: 3U / 56 HP
Test type: manual
Test: single-phase version up to 10 A
Digital display: for leakage current value
Test type: Test type A and B, switchable
Power supply: via external transformer
Measuring ranges: switchable between 500 µA and 5 mA
Interfaces: without interface
