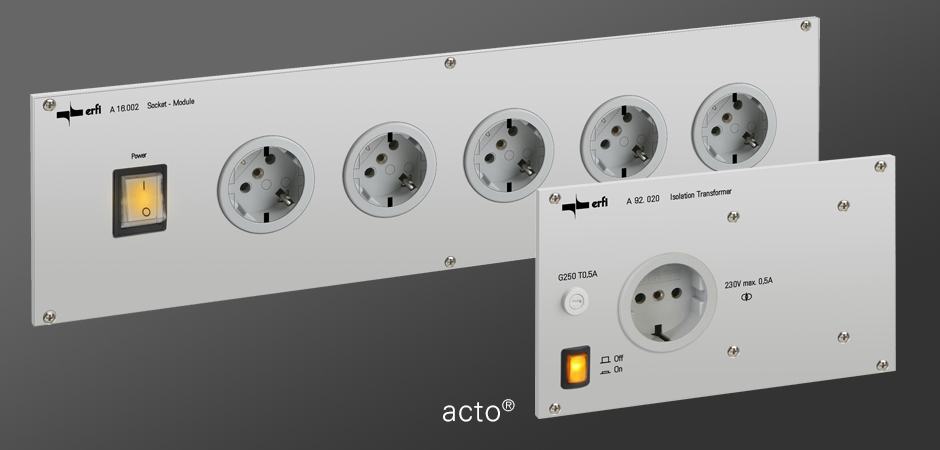

The insert plate system acto

by erfi

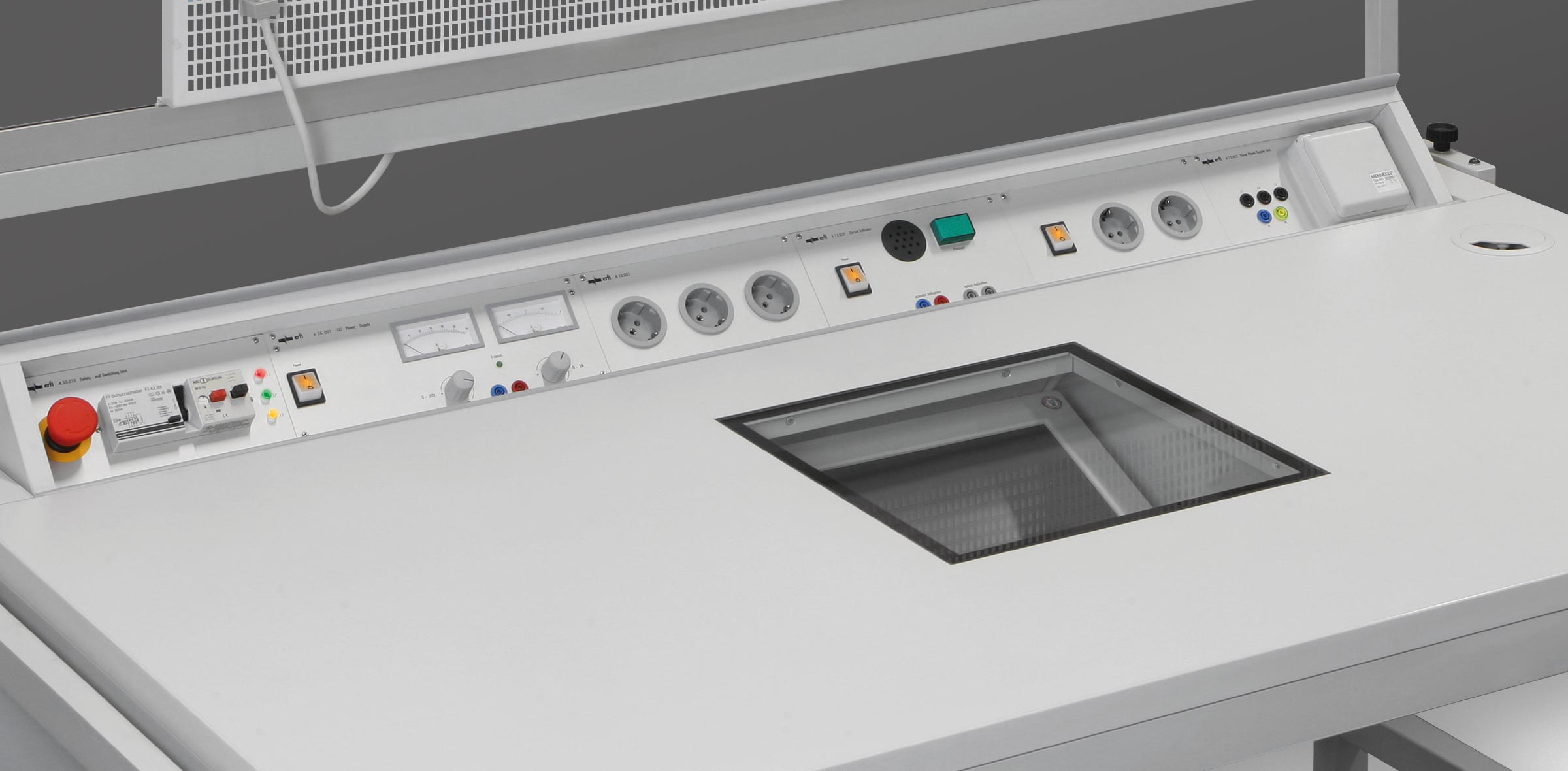

The insert plate program acto is an extremely powerful compact device program with an ergonomic height of only 113 mm and a minimum installation depth. This allows the installation in many erfi system components such as system channels, power structures, and swivel assemblies. The program acto already contains many of the unique features of the large 19″ device familie basic.

The automatic data logging is done in combination with the remote control software highlink Power to remotely control regulation power supplies with intelligent ramp generator and feedback function for U and I as well as the remotely controllable function generators incl. readback function.

Special features of the acto system

– Ergonomic height and minimum depth
– Easy installation in many erfi system components
– Exremely powerful

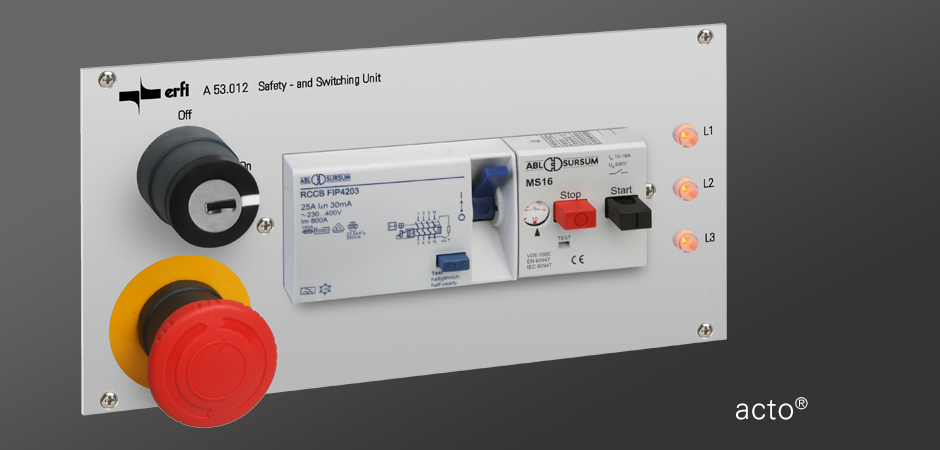

acto – Network modules, safety and switching units

This acto product group contains various safety and switching units tailored to a wide range of applications, which include personal protection and line protection. The elements serve to protect the operating personnel and to safeguard the workplace.

acto – Fixed AC power supplies single-phase, as well as single-phase and three-phase

This acto device group offers a wide range of fixed single-phase AC supplies, such as non-floating socket modules, floating AC modules and floating low-voltage AC modules.

This acto device group offers combined three-phase and plug-in modules in non-earth-free and floating versions as well as floating rotary low-voltage modules.

acto – Variable single-phase AC power supplies

This acto device group includes both non-isolated and isolated variacs (autotransformers), some of which feature integrated rectifiers.

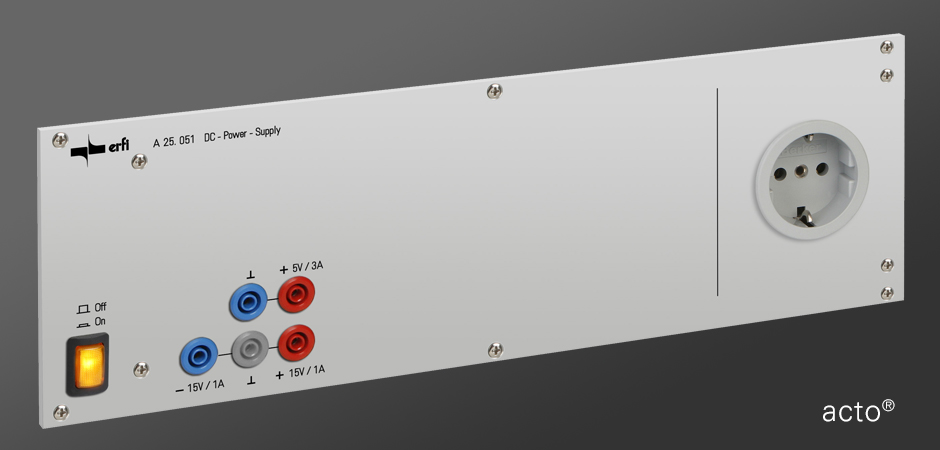

acto – Fixed DC voltage sources

This acto equipment program offers a variety of DC voltage sources. 5, 12, 15 and 24 V sources are common, as are multiple fixed voltage sources that deliver voltages of +/- 5V, +/- 12V and +/- 15V. The device program includes both linear regulators and switching regulators.

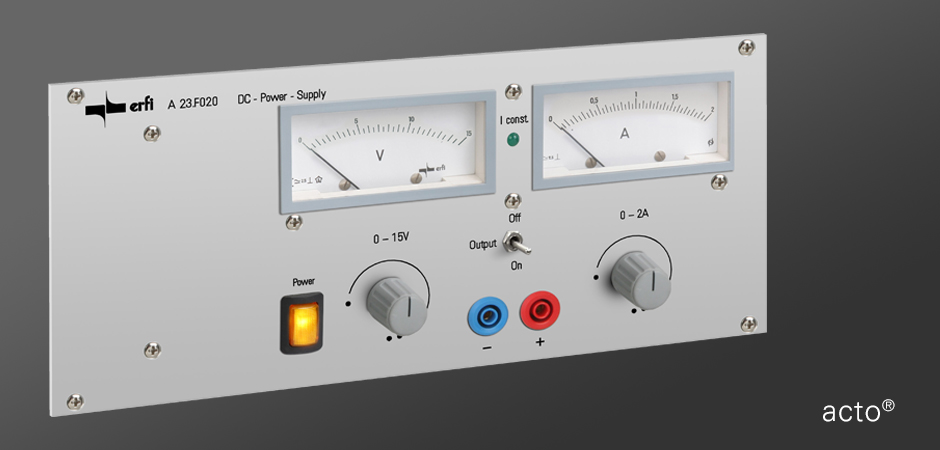

acto – Variable, remote controllable DC power supply

These acto regulating power supplies have an extremely high degree of functionality due to the innovative processor technology. Technical features such as the Plug and Play function, integrated ramp generators for long-term tests, table functions, RS232 interfaces and optionally available USB interfaces are just some of the outstanding technical control parameters that are integrated as standard in acto.

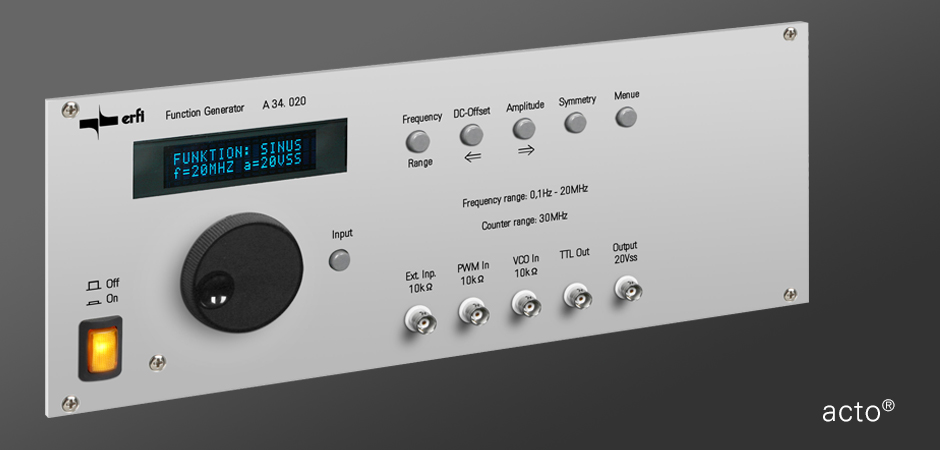

acto – Remote controllable function generators

This acto device group of remotely controllable function generators offer Feedback functions, integrated counter or integrated USB 2.0, and RS232 interfaces as standard. Frequency ranges up to 20 MHz, amplitudes up to 30 Vss and frequency counters up to 100 MHz in combination with the remote control software highlink Power, it ensures optimal measurement data acquisition and system integration. Power amplifiers up to 40 Weff complete the picture of this device series and open up access to intelligent and highly efficient automated data acquisition.

acto – Pneumatic units

This acto device group is the answer for compressed air devices at laboratory or manufacturing assembly workstations. To supply these components, the acto program offers pneumatic units with variable and constant compressed air supplies.

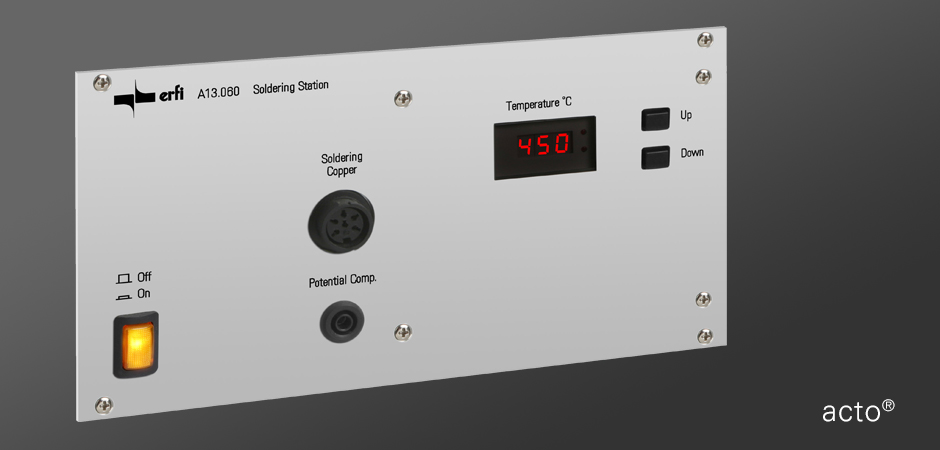

acto – Testing and soldering stations

This acto device group includes workable devices such as:
– Phase sequence indicator
– Continuity tester
– NF test equipment
– Test loudspeakers
– Soldering and desoldering stations
– Thermometer
– Load resistances
– Voltage and current transmitter

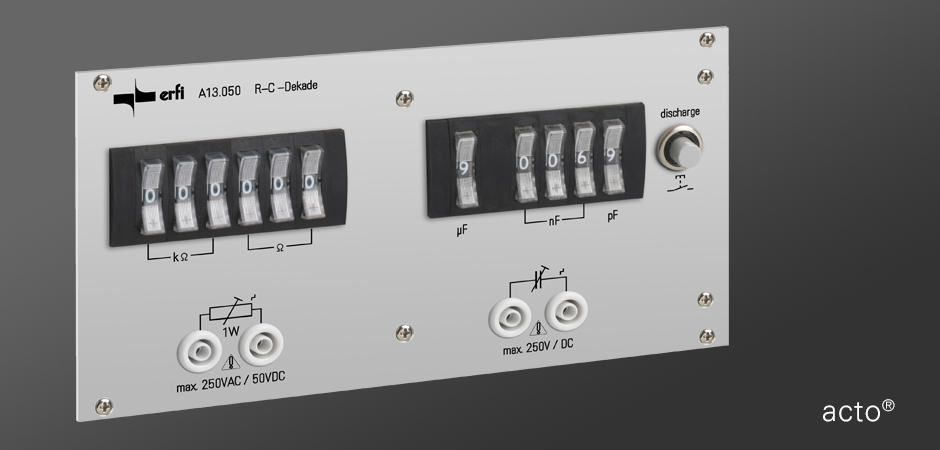

acto – Decades and Logades

This acto device group includes:
– RC-decades
– RC-logades
– L-logades

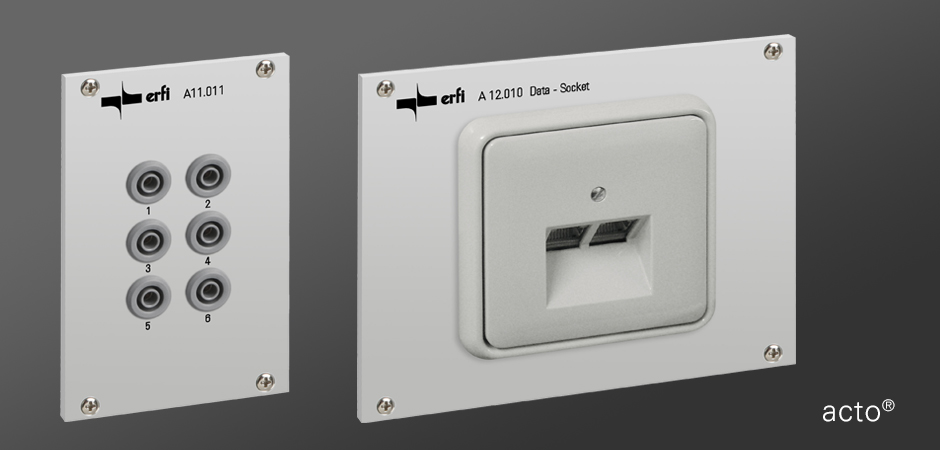

acto – Selector poles, interface fields and auxiliary devices

This acto device group includes:
– Practical electoral fields
– Modern interface fields
– RJ45-data sockets
– Antenna sockets
– Meaningful empty plates
